Amorphous single needle winding machine
This winding machine is made of unidirectional winding, automatic cutting, and automatic welding.
Amorphous Strip Winding Machines
machine
winding
adjustable
adopts
Classifications:
Amorphous Strip Winding Machines
- Product Description
- Equipment Parameter
-
- Commodity name: Amorphous single needle winding machine
This winding machine is made of unidirectional winding, automatic cutting, and automatic welding.
This winding machine is made of unidirectional winding, automatic cutting, and automatic welding.
This winding machine continuously feeds the tape and adopts constant tension control to ensure product tightness, size consistency, and adjustable tension.
This mechanical feeding trough guides and guides the correct feeding. Easy to adjust, with a wide width range.
The cutting blade has a unique design and is made of special steel, which will not cause cracks during cutting, making it durable and maintenance free for life.
The welding machine has good consistency, adjustable current size, suitable for welding various materials, and good stability.

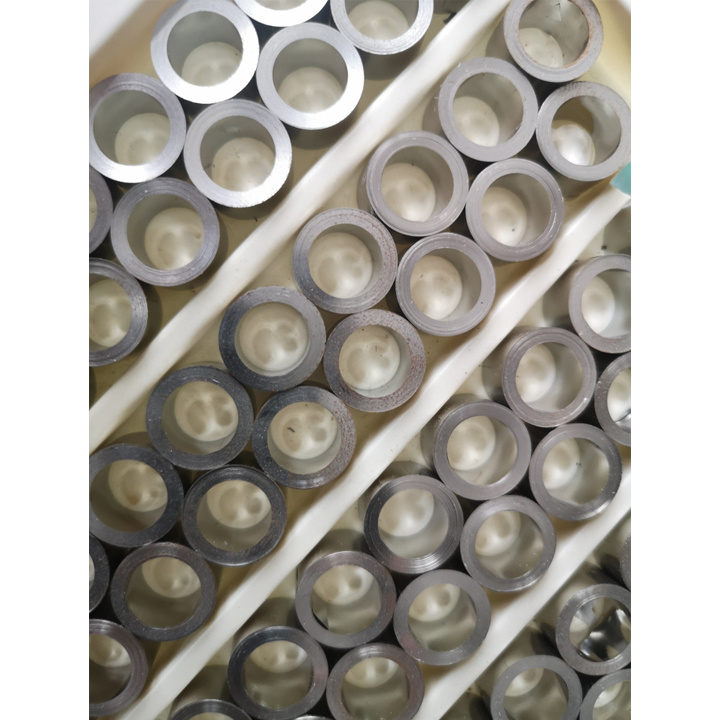

This mechanical winding adopts Siemens servo motor to drive the needle drive through synchronous belt, which is more accurate, reliable and fast than traditional mechanisms that use auxiliary structures such as motors to drive the needle drive. This ensures that the size and number of turns of the amorphous coil are consistent, effectively improving the quality.
This machine adopts photoelectric control, which ensures accurate positioning, smoother and more reliable operation, improves the winding productivity of the machine, and reduces the incidence of failures.
Equipment optional accessory functions:1. Outer diameter detection servo motor control, parameterized and adjustable;
2. Tension taper control, parameterized and adjustable, and displayed online;
3. Welding current can be displayed online and digitally adjustable;
-

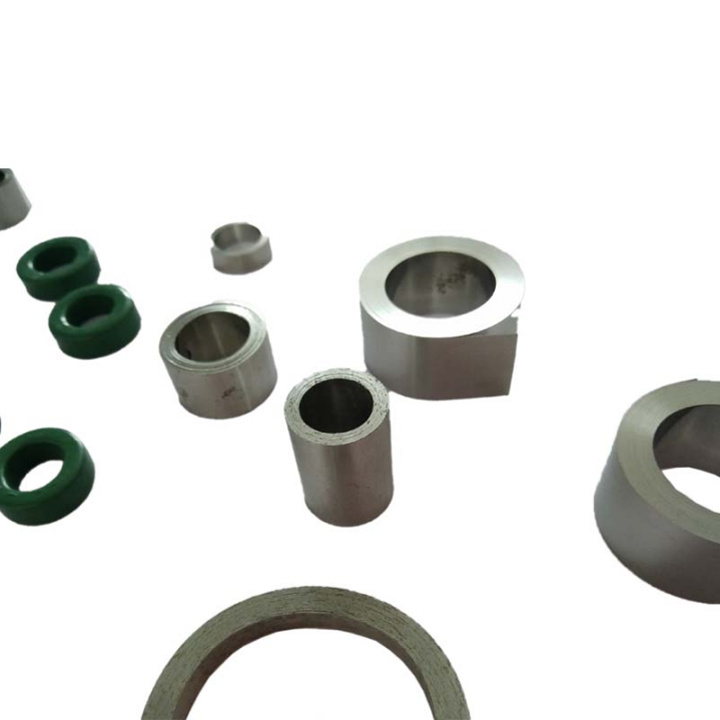

Models Inner dlameter of core (mm) Outside diameter of core (mm) Core height (mm) HJD-10 ∮2.0-∮6 ∮3-∮10 3.0-8 HJD-50 ∮8-∮25 ∮10-∮45 8-20 HJD-60 ∮15-∮40 ∮16-∮60 8-25
