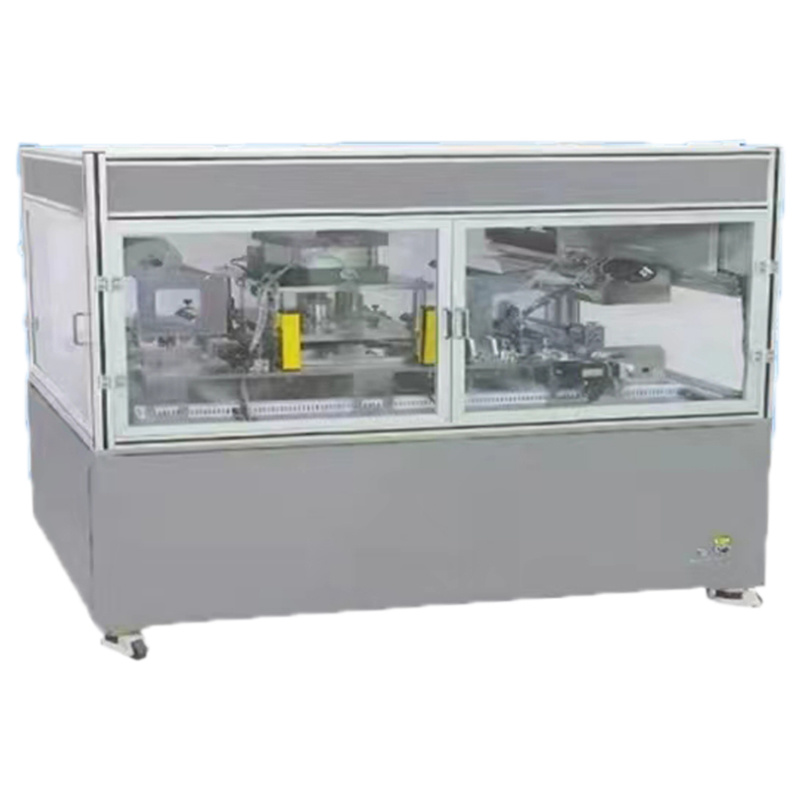

Film cutting machine
Roll type polarizer feeding, die cutting with knife template, and waste material collection with configuration
Film Cutting Machine
cutting
collection
die-cutting
mechanism
Classifications:
Film Cutting Machine
- Product Description
- Equipment Parameter
-
- Commodity name: Film cutting machine
Roll type polarizer feeding, die cutting with knife template, and waste material collection with configuration
Roll type polarizer feeding, die cutting with knife template, and waste material collection with configuration
PET film material carrier tape discharge, collection box for die-cutting excellent pieces
High strength frame, precision upper and lower pressure plates, high-performance cutting tools to ensure die-cutting effect
Die cut products have small burrs, no powder loss, no indentation or other appearance defects
Comes standard with a set of positive and negative electrode blade molds, and the shape of the molds can also be customized according to customer requirements
Can automatically count, design safety light curtain interlock to ensure safe operation
Design of Organic Glass Safety Protective Cover for Operating Mechanism
The operation interface can switch between Chinese and English
The unwinding mechanism adopts inflation shaft control
-
Models Fully automatic die-cutting machine HYM-250 Power supply Voltage half phase 220VAC ± 10 (customizable 110VAC), frequency: 50Hz/60Hz, power: 1KW Air Source 0.5-0.8MPa compressed air Die-cutting dimensions Max.L250*W250mm Die-cutting dimensions
Punching sizeMax.4T Die cutting effect Burr ≤ 20 μ m, no collapse at the edge Punching accuracy 士0.1mm Punching speed Aax.10PPM Punching thickness Max. (0.5mm copper foil) (0.1mm stainless steel) Coil diameter Max.260mm (approximately 220m in length) Substrate width Max.280mm (with a distance of no less than 15mm from the edge of the die-cutting on one side) Error correction accuracy 士0.5mm Counting method Touch screen display Size of equipment L1650mm*W900mm*H1700mm Weight About 850Kg
