Semi automatic cylindrical winding machine

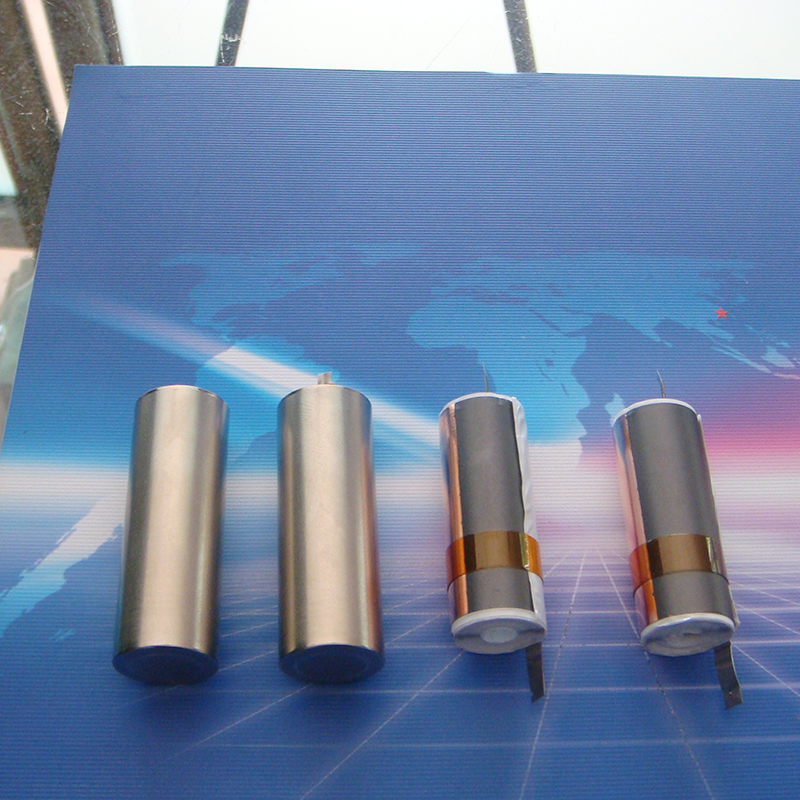

Suitable for the production of cylindrical lithium-ion batteries with specifications such as cylindrical and electronic cigarettes.
Winding Machine
automatic
advanced
electrode
cylindrical
Classifications:
Winding Machine
- Product Description
- Equipment Parameter
-
- Commodity name: Semi automatic cylindrical winding machine
Suitable for the production of cylindrical lithium-ion batteries with specifications such as cylindrical and electronic cigarettes.
Suitable for the production of cylindrical lithium-ion batteries with specifications such as cylindrical and electronic cigarettes.
Adopting a single needle on both sides of the needle pulling structure, the needle winding is synchronously driven on both sides of the needle winding.
Manual import of polarizer, automatic winding, automatic needle change, automatic tape termination, and automatic cutting.
Two rolls of diaphragm actively unwind, with continuously adjustable tension.
The software can achieve various states such as advanced positive electrode, advanced negative electrode, and simultaneous entry of positive and negative electrode, with simple parameter settings.
The winding speed changes steadily, and the tension of the battery cells is consistent.
-
Serial number Parameter Name Technical parameters A/B Company remarks Needle diameter φ2.0-φ3.0/φ3.0-φ8.0 mm Customizable Adhesive tape method Horizontal sticker Terminate the tape parallel to the pole ear Closing method unlimited mm Closing of diaphragm outer packaging speed 6-9/8-10 Pcs/min Depending on specific specifications Diaphragm alignment error ±0.3 mm Pole alignment error ±0.3 mm External dimensions 1000LX1200WX1370H mm Excluding the extension length of the material trough Total power 800 w Power Supply AC220V50HZ weight About 650 kg Materials (A/B) Length of material (mm) Width of material (mm) Thickness of material (um) Maximum diameter (mm) Inner diameter (mm) Range of dimensions Size range tolerance Size range tolerance Positive electrode sheet 100-400/300-1700 20-68 0.2 60-200 5 ------ ------ Negative electrode sheet 100-400/300-1700 20-68 0.2 60-200 5 ------ ------ the diaphragm Roll material 20-70/35-60 0.2 16~25 – 250 76.2 Terminate the tape Roll material 8-20/8-50 0.2 16~35 – 150 76.2
