Silicon steel iron core cutting and folding machine

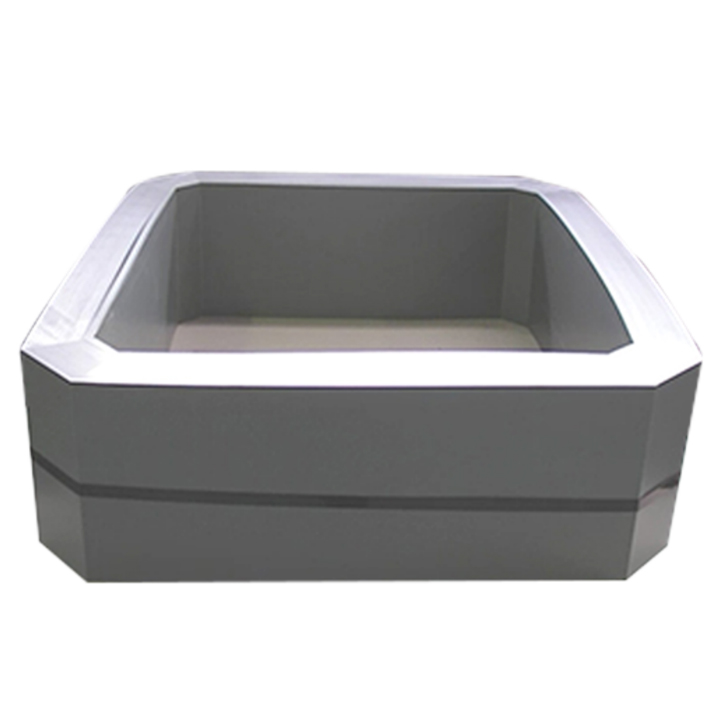

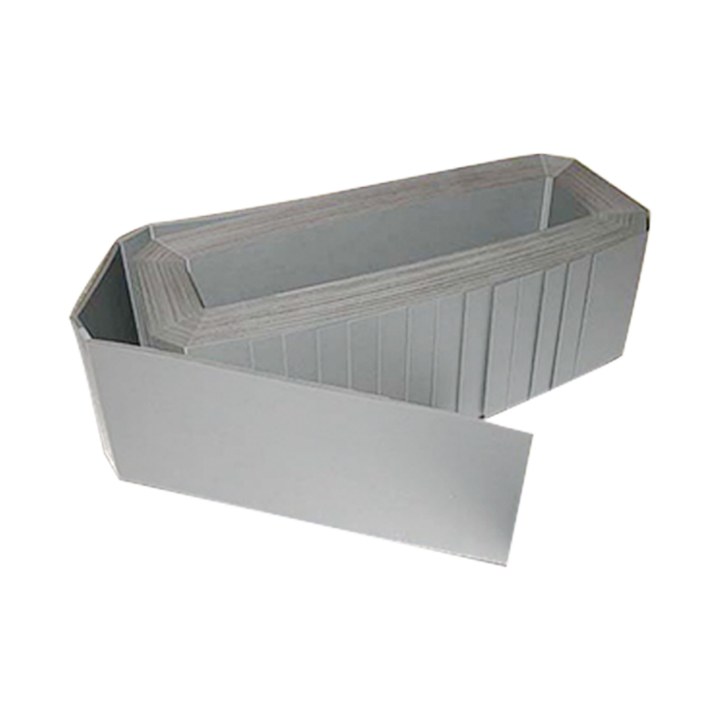

The bending angles are 30 °, 45 °, and 60 ". Can produce double opening angled iron cores, single opening angled iron cores, non opening angled iron cores, combination angled iron cores, etc. Horizontal 2-20 step blades, with 1-3 blades per level. Realize the manufacturing of fully functional transformers, providing high-precision and high-efficiency production.
Shear and Folding Machine
machine
folding
cutting
Classifications:
Shear and Folding Machine
- Product Description
- Equipment Parameter
-
- Commodity name: Silicon steel iron core cutting and folding machine
The bending angles are 30 °, 45 °, and 60 ". Can produce double opening angled iron cores, single opening angled iron cores, non opening angled iron cores, combination angled iron cores, etc. Horizontal 2-20 step blades, with 1-3 blades per level. Realize the manufacturing of fully functional transformers, providing high-precision and high-efficiency production.
1. The bending angles are 30 °, 45 °, and 60 ". Can produce double opening angled iron cores, single opening angled iron cores, non opening angled iron cores, combination angled iron cores, etc. Horizontal 2-20 step blades, with 1-3 blades per level. Realize the manufacturing of fully functional transformers, providing high-precision and high-efficiency production.
2. The width of the processed sheet material is 20-400mm, the thickness of the sheet material is 0.18-0.50mm, and the length tolerance is ± 0.1mm.
3. The control system is controlled by an industrial specific industrial computer, and the human-machine interface software is clear and easy to use. The control system has multiple automatic calculation functions, and production can be achieved by inputting basic dimensional data.
-
Equipment model: HCJ-200 HCJ-400 Steel sheet width: 18-200mm 18-400mm Cutting length: 30-1000mm 30-1000mm Thickness of steel sheet: 0.18-0.5mm 0.18-0.5mm Length tolerance: 士0.1mm(≤1000mm)
士0.2mm(>1000mm)士0.1mm(≤1000mm)
士0.2mm(>1000mm)Feeding speed: 1800mm/s 1800mm/s Number of servo axes: 3 4 Power supply specifications: 380VAC,50/60Hz 380VAC,50/60Hz Power: 4KW 5KW Equipment weight: 1600kg 1800kg Equipment size: 1250*1050*1750mm 1350-1250*18050mm
