- Commodity name: Silicon steel silicon steel core winding machine
This winding equipment is widely used in silicon steel, power transformers, transformers, ballasts, audio transformers, magnetic amplifiers, and voltage regulators.

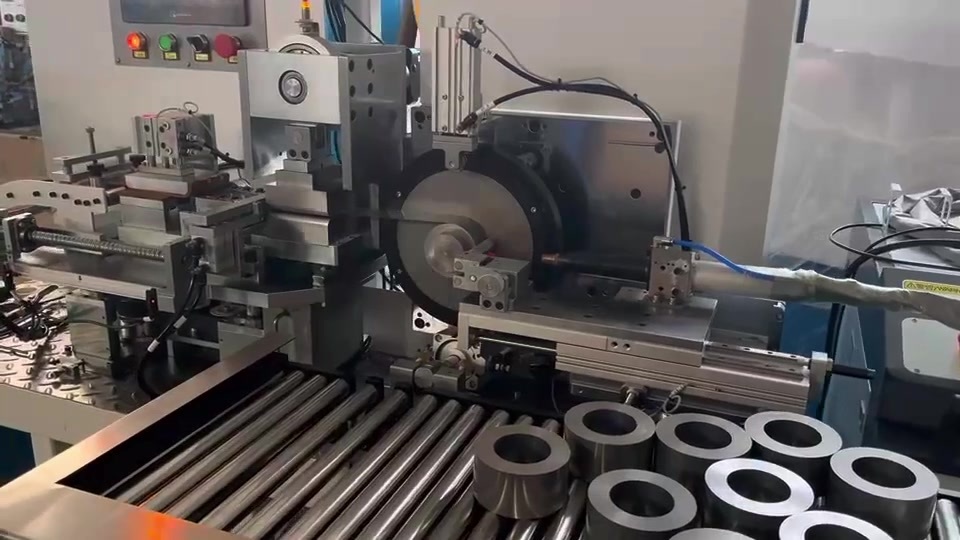

This winding equipment is widely used in silicon steel, power transformers, transformers, ballasts, audio transformers, magnetic amplifiers, and voltage regulators. The production process of cable TV power supplies, chargers, etc. is fully computer-controlled, and the entire feeding, clamping, topping, winding, cutting, and welding processes are monitored in a closed-loop manner. Each program is completed synchronously during the rolling process, with fast speed, high efficiency, stable products, and no need for dedicated personnel to guard.
-
Models HT1505 HT20080 HT250100 HT300120 HT300100

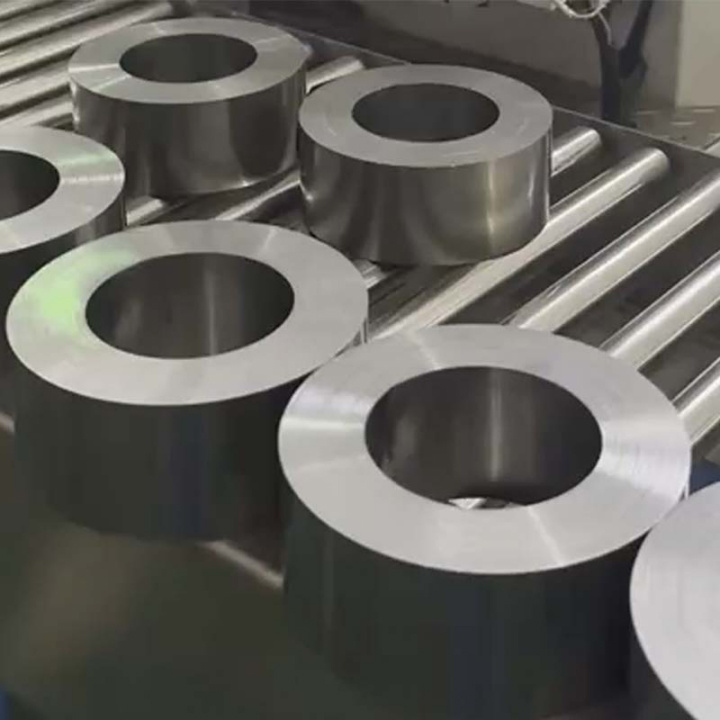

Function Suitable for winding circular, square, c-shaped, rectangular core Die diameter 20-120mm 40-180mm 40-200mm 80-260mm 60-240mm Maximum outer diameter of winding 150mm 200mm 250mm 300mm 300mm Thickness of steel sheet 0.18-0.35mm Width of steel sheet 10-50mm 20-80mm 20-100mm 20-120mm 100mm Alignment accuracy on both sides of the iron core <0.2mm Barometric pressure 8kg/cm

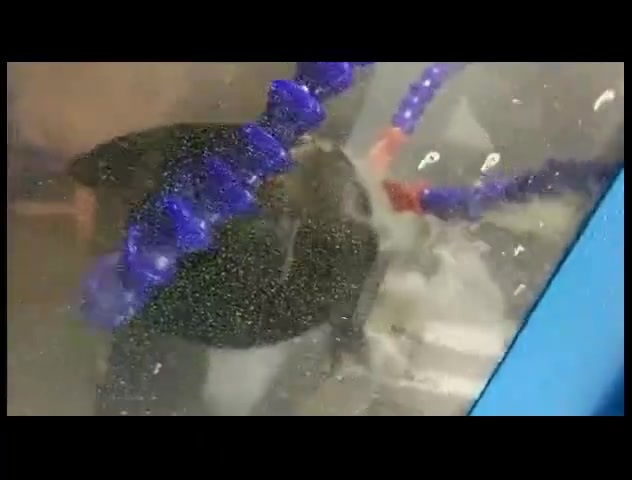

Video relacionado
